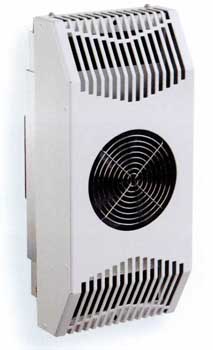

Thermoelectric Coolers

Thermoelectric Coolers minimize downtime and component loss
by removing heat around critical components within an enclosure.
These compact, low-profile coolers using the Peltier effect allow
for cooling of small indoor and outdoor enclosures. No condensers,
compressors or filters are required making it a reliable solution for
demanding low-maintenance environments.

Features:

• DC powered operation for 24 volt and 48 volt applications
• Low profile design allows for mounting vertically and horizontally on any enclosure to avoid
  interference with internal components
• Filterless design reduces maintenance requirements
• Earth friendly design, contains no refrigerant
• Prewired with simple terminal block for easy wiring hook up

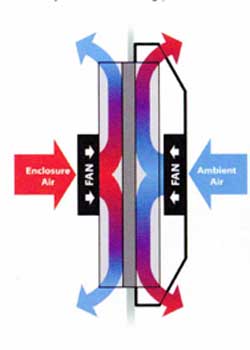

• Operates on the Peltier effect for cooling or heating
• Compressor-free air conditioning for demanding indoor and outdoor applications
• Shrouded and unshrouded models included in standard packages
• Operating temperature range -40°C (-40°F) to 55°C (131°F)
• Partial recess mount
• 60 Watt 24 Volt, 100 Watt 24/48 Volt, and 200 Watt 24/48 Volt models available
• Bulletin: MCLT

Accessories:

• Optional thermoelectric temperature controller regulates cooling and heating automatically
• Optional thermoelectric condensate manager helps direct condensation to the bottom of the enclosure

Industry Standards:

• UR, cUR Recognized; Type 12, 3R, 4, 4X; File No. SA6453
• CE
• IP 65
